Mercedes distinctive 2026 F1 entrance wing design revealed in Barcelona check

When new guidelines come into pressure in Formulation 1, it is pure to see many various interpretations throughout the grid, particularly on these elements that outline the automobile’s general idea. From tail to tip, from the sidepods to the suspension, all the way in which to the entrance wing, modifications have swept the 2026 automobiles according to the brand new philosophy this season.

The FIA has sought to restrict the outwash impact that made it tough for automobiles to comply with one another by way of corners in earlier eras, whereas on the similar time introducing a serious new characteristic: energetic aerodynamics on the entrance flaps. This latter component mitigates the impact aerodynamic drag would have on energy demand from the engine’s hybrid system.

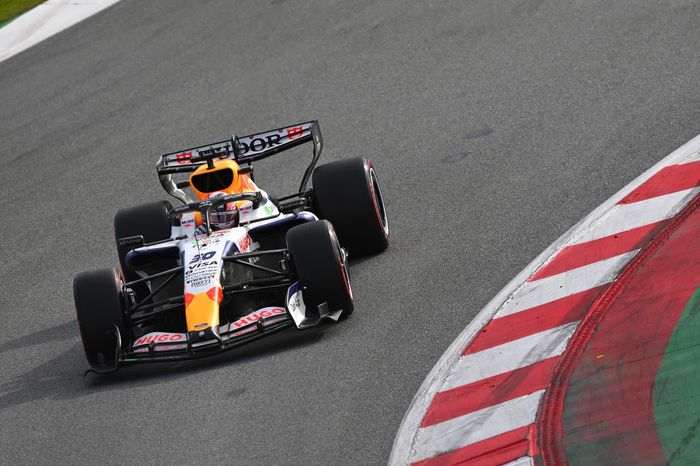

On this entrance, past a couple of exhausting factors, the rules grant groups a sure diploma of freedom each in how the wing is interpreted and within the positioning of the actuators that management the rotation of the flaps — akin to underneath the nostril, or with two components on the mainplane, as within the case of Racing Bulls.

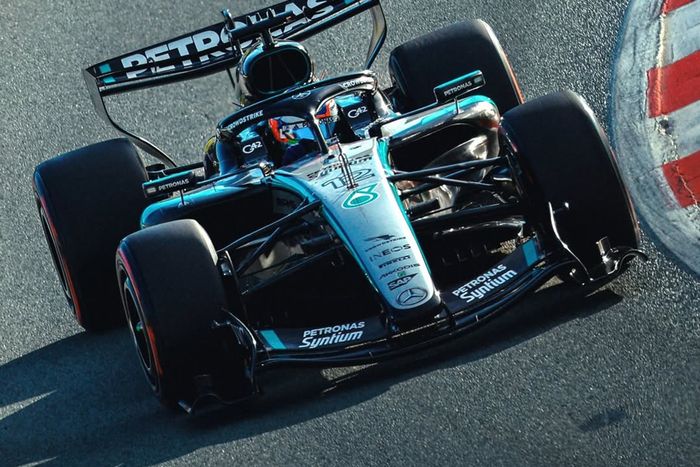

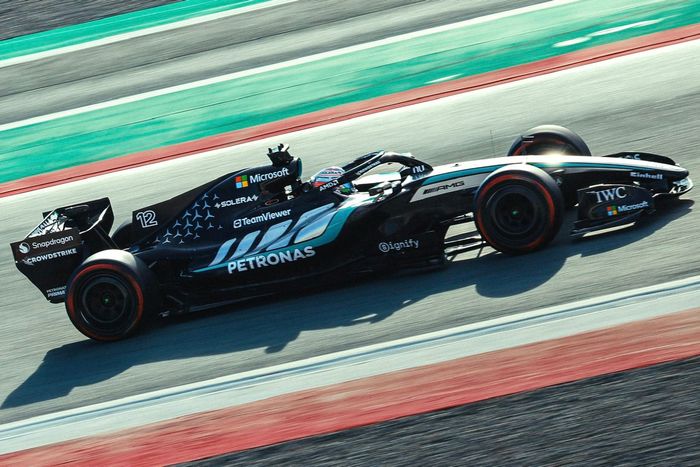

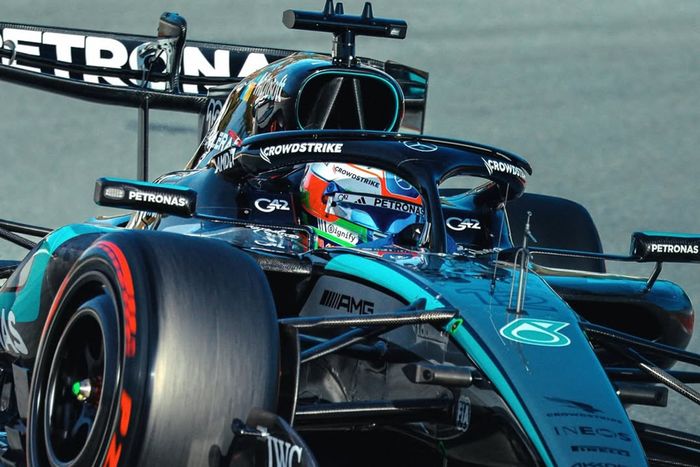

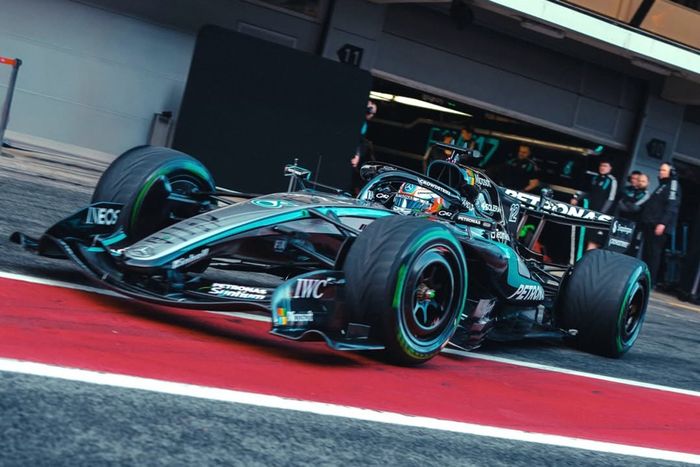

Andrea Kimi Antonelli, Mercedes W17

Foto di: Mercedes AMG

The pattern adopted by most groups is to have two separate components rotate – the utmost allowed by the rules – as a way to maximise drag discount within the areas the place energetic aerodynamics may be deployed.

However one crew has taken a distinct path in contrast with its rivals: Mercedes.

The place the W17 clearly differs from its rivals right here is the selection of mounting level for the 2 pylons that join the nostril to the entrance wing. On all the opposite automobiles seen up to now, this mounting level is on the principle aircraft, whereas on the W17 the pylons are hooked up to the secondary aircraft (highlighted in blue in our photographs), so solely the flaps on the third aircraft (highlighted in yellow) are free to maneuver.

On this level, the rules do not impose notably strict restrictions: the presence of 1 or two movable components is left to the groups’ discretion, as is the selection of which flaps – outlined as “major” or “secondary” relying on their place on the wing – to make energetic. The primary constraints are as an alternative associated to the axis round which the weather should rotate, the variety of flaps allowed to take action, and the “deflection” relative to the usual place, which is 30 mm for the first flap and 60 mm for the secondary one.

Front wing detail of Mercedes W17 with fixed secondary plane highlighted in blue and moveable tertiary planes highlighted in yellow

Entrance wing element of Mercedes W17 with mounted secondary aircraft highlighted in blue and moveable tertiary planes highlighted in yellow

Photograph by: Formulation 1

On the core of this lies a distinct interpretation of how you can exploit the wing components. The one component able to rotating could be the ultimate one (highlighted in yellow in our photographs), whereas the mounted second flap would even have a distinct angle of incidence in comparison with its rivals. Throughout Monday’s working, Mercedes paid explicit consideration to this space, even going “old fashioned” by making use of wool tufts to analyse the behaviour of the airflow.

This method inevitably raises some questions. Is that this an answer meant to stay in place for the complete season, or will there be circuits the place, primarily based on monitor traits and downforce necessities, Mercedes chooses to change the wing? For instance, in recent times Silverstone has grow to be a type of circuits the place groups have begun to lean in direction of comparatively low-downforce setups.

Insiders in a number of groups have mentioned that the perfect degree of downforce when the straightline mode is energetic will differ from monitor to trace. It is not essentially the case that they’d wish to shed as a lot as potential, so a component of tuneability is required.

Up till final yr, we noticed how groups may even make modifications to nostril size in the course of the season with out having to endure a brand new crash check, because the inside construction remained unchanged and solely the outer shell was modified. In concept, this margin would additionally permit for a revision of the place of the assist pylons — however that is one thing that can definitely be answered over the course of the season.

Mercedes W17 front wing detail with fixed secondary plane highlighted in blue, moveable tertiary flaps highlighted in yellow, and flow conditioners highlighted in red

Mercedes W17 entrance wing element with mounted secondary aircraft highlighted in blue, moveable tertiary flaps highlighted in yellow, and circulation conditioners highlighted in pink

Photograph by: Mercedes AMG

There may be one other fascinating component value highlighting on the W17’s entrance wing. By means of the selection of the place sure elements are positioned, Mercedes has created a channel within the decrease a part of the nostril that directs airflow towards the underfloor, all the way in which to the T-tray space.

Unsurprisingly, this space options appendages (highlighted in pink in our photographs) devoted to managing and optimising the course and high quality of the airflow downstream.

Within the photographs launched in the course of the Silverstone filming day, it seems that a portion of the ultimate flap is definitely mounted, whereas the metallic inserts positioned proper on the finish of that part are tasked with guiding the airflow and producing small vortices which might be helpful for circulation administration in that space.

Photographs from Barcelona shakedown

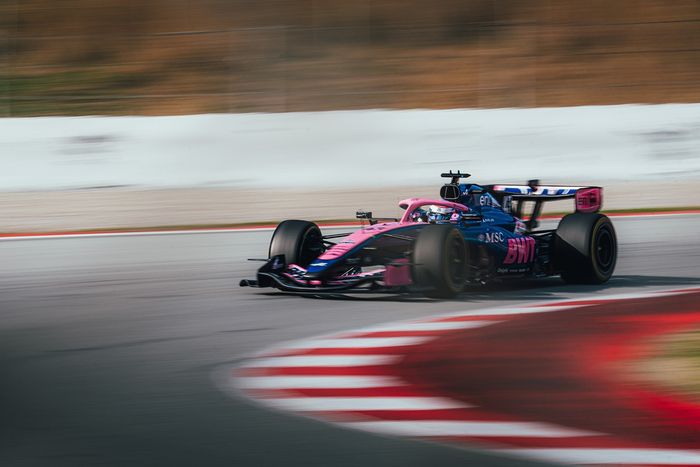

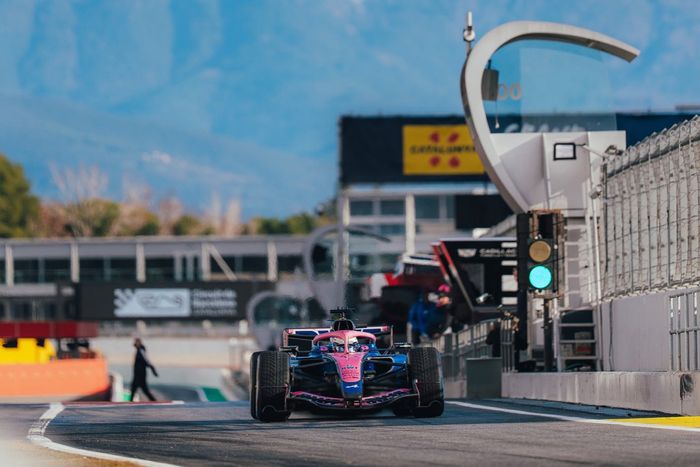

Franco Colapinto, Alpine
