F1’s present guidelines have step by step led to the closest grid in historical past, which suggests a minor improve could make the distinction between scoring factors and being out in Q1. Paired with tough ground-effect vehicles and limitations on spending and aerodynamic testing, it has made the margin for error within the improvement course of even smaller, with each replace rigorously thought of and requiring complete integration of each division concerned.
The identical is true for , which has been on each side of that tight midfield over the previous 18 months. Apart from taking an influence unit, gearbox and suspension from large brother , Racing Bulls builds all the pieces in-house with over 500 individuals at its most important headquarters in Faenza and one other 200 at its Milton Keynes campus. That is the place the five-step journey from aero thought to operating on observe begins.
Step 1: Aerodynamics
Each aero efficiency improve begins with an thought conceived by the aerodynamicists, which within the case of Racing Bulls are mainly positioned on the staff’s new UK headquarters in Milton Keynes, though the staff’s new location free method is now additionally permitting individuals to work from Faenza. The advantage of shifting to the Purple Bull Applied sciences campus is simple entry to Purple Bull’s wind tunnel, which is why most aero employees are based mostly there, in addition to a small staff designing and producing 60% scale windtunnel fashions of all new aero surfaces.
Commercial
Below F1’s price range cap each staff needs to be rather more disciplined relating to what number of concepts it fleshes out, as there should not solely price range restrictions but additionally limitations on wind tunnel hours and CFD work. However groups have been in a position to compensate for these restrictions by rising the effectivity and accuracy of their strategies.
“Step one of the method is CFD analysis,” says Matteo Piraccini, Racing Bull’s operations director, as he guides us round a tour of the squad’s compact however trendy Faenza amenities. Piraccini, who is predicated in Faenza, ensures each factories are firing on all cylinders as they produce the quickest doable F1 vehicles in probably the most environment friendly method. “If we’re ranging from 10 aero shapes, then two or three of these will probably be passing by means of the wind tunnel. On the finish we accumulate all the info after which determine what the perfect answer is.
“That does not simply contain the aerodynamicists. They’re working very intently with VPG – the automobile efficiency group – which passes a brand new aero floor by means of a simulation to see if it might actually be a web acquire on the precise circuit. You need to take into accounts automobile stability, circuits traits like bumpiness and completely different necessities for the automobile. In spite of everything, aero numbers are simply numbers.”

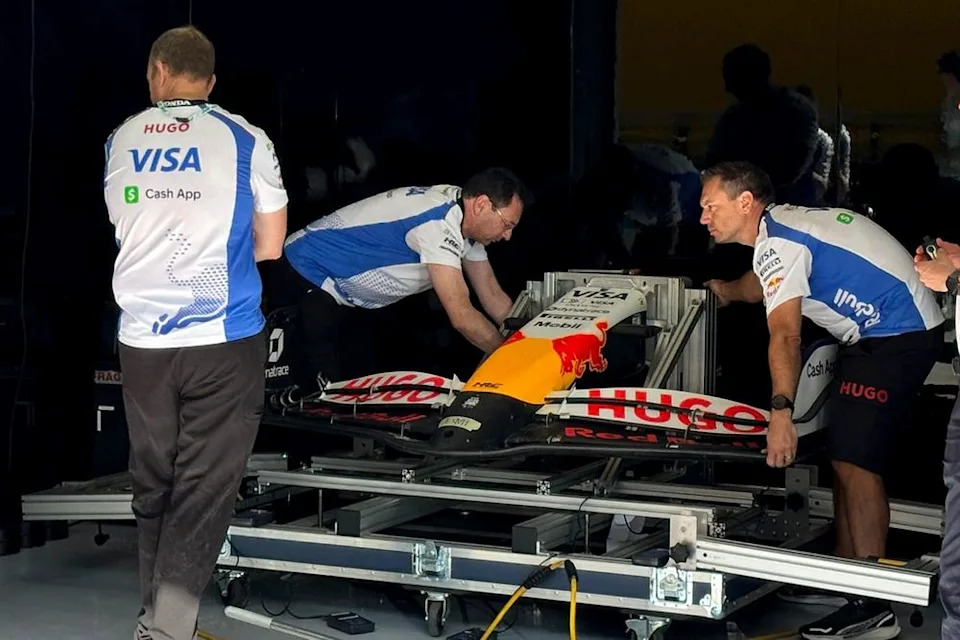

Racing Bulls VCARB 02, entrance wing
Racing Bulls VCARB 02, entrance wingRoberto Chinchero
Roberto Chinchero
Commercial
These concerns have been particularly related for the 2022 era of ground-effect vehicles, with a number of groups having discovered it exhausting to translate digital numbers into real-world advantages. That features Racing Bulls with its 2024 Barcelona ‘downgrade’, however larger squads together with and Aston Martin have additionally struggled.
Relying on the scale of the improve bundle, minor tweaks could be signed of by efficiency managers whereas larger revamps go all the way in which as much as the extent of the technical director. Their approval is known as the ‘aero launch’, an official communication throughout the staff that provides the go-ahead to the following hyperlink within the chain to get to work; the design workplace. That call not solely takes into consideration the efficiency acquire of the half but additionally timing, as sure circuits require particular upgrades. Loads of groups produced bespoke high-downforce wings in time for Monaco, whereas Baku can be one circuit the place decrease downforce components are being launched. It’s a cautious juggling act to make sure the proper components are within the pipeline and prepared for the proper circuit.
Step 2: Design
The aero shapes are despatched from Racing Bulls’ UK aero division to its design workplace is predicated in Faenza, the place designers are tasked with taking the conceptual surfaces and switch them into precise components. It is not nearly getting the form precisely proper, but additionally about designing them with the proper stage of structural integrity, which is finished with CAD and structural software program. The Barcelona weekend is an effective instance, with groups being pressured to beef up their entrance wings to adjust to the FIA’s stricter load exams because it clamps down on entrance wing flexing. It’s anticipated all 10 groups must make modifications to their wings, even those that do not significantly exploit flexing.
Commercial
“On the design specification there’s the aero form requirement and completely different necessities that are linked to reliability and to FIA necessities,” Piraccini explains. “Bodywork is extra simple, as a result of it simply has to have a authorized form. However after we are speaking a couple of structural half, such because the entrance wing, rear wing and ground, we have now additionally to match legality each from dimensional and structural viewpoint to adjust to the FIA’s exams.
“Within the technical laws there’s a process with a load being utilized in just a few areas. Corresponding every step of the load, the deformation of the flap or wing has to remain inside sure limits. That’s all a part of the design specification, which has now modified for Barcelona.”
Photograph by: Purple Bull Content material Pool
Commercial
Different constraints embrace leaving sufficient area for complicated cooling methods, wiring looms, and cutouts for over 200 sensors. Designers aren’t simply designing the carbon fibre components themselves but additionally all of the tooling required to supply them. A brand new ground design additionally means a brand new mildew required to form it, so these processes are being synchronised as a lot as doable.
“All our designers are in a position to work in actual time with the identical info, and that is why one of the essential instruments of the design workplace is digital mock-up of the automobile,” Piraccini provides. “If in case you have a bunch working across the ground and a special group of working across the physique work, and they aren’t speaking on the identical time in entrance of the identical info, we are able to have a ground which isn’t matching the bodywork, and we’re going to lose effectivity in our design course of”
Step 3: Manufacturing
It is very important stress that this isn’t a linear course of. The manufacturing division is not twiddling its thumbs ready for the total design specification to be finalised. To additional enhance “time to race”, one of many largest KPIs in automobile improvement which suggests how lengthy it takes for an aero idea to seem on the precise race automobile on the circuit, the manufacturing division is pressed into motion earlier than the total design specification is finalised.
Commercial
“A entrance wing is made up of various components and we aren’t ready for the final bit to launch the manufacturing course of,” says Piraccini. “As soon as the primary aircraft of the entrance wing is launched, the manufacturing division is beginning the manufacturing course of. Like an orchestra conductor, the product administration officer is managing info and timing to make sure that the time to race is as quick as doable.
Producing carbon fibre composites requires a really particular course of. Works shifts to a “clear room”, the place carbon fibre sheets are laminated utilizing resin to acquire what is known as a moist ply. Because the identify suggests the clear room is a rigorously managed atmosphere to keep away from particles contaminating the ply, which might compromise the standard of the tip product. Particles left in between carbon fibre layers might even trigger cracks as soon as the components are getting used and careworn.
As quickly because the half has been laminated with moist ply, it passes by means of a remedy cycle into an autoclave, which is a big oven that may be set to a sure temperature – generally 100 to 250 levels – in addition to three to seven bars of stress. That is the place the carbon fibre composite is cured and receives its beneficial power to weight ratio. As soon as it is out of the oven, the half will get a primary check-up and passes by means of a trim division which cleans and polishes it to additional take away any grime.
One of many autoclaves, or big pressurised ovens, used to remedy carbon fibre composites.
One of many autoclaves, or big pressurised ovens, used to remedy carbon fibre composites.Purple Bull Content material Pool
Purple Bull Content material Pool
Commercial
Fairly what number of spare components are being produced for every improve is determined by the circumstances, as nobody desires to supply greater than obligatory each for value and bodily assets. “There isn’t a magic quantity,” says Piraccini. “Monaco requires high-downforce rear wings and everyone knows how dangerous that observe is for harm, so we based mostly on our threat evaluation we would select to supply 4 or 5 wings. However typically you favor risking it and getting only one or two wings out for those who can, as a result of it is efficiency.
“Within the case of Barcelona’s entrance wings, nevertheless, it isn’t a brand new aero bundle that’s simply ‘good to have’, however a compulsory replace from the FIA. In that case we can’t run any dangers, so work began prematurely to make sure that in Spain we can have sufficient spares that move the FIA’s new exams.”
Step 4: High quality
The fourth main step within the course of is the standard division, which validates the freshly produced part. In addition to dimensional checks to make sure the tip product complies with the design specification, there are additionally two methods of testing an element’s integrity. There is a “harmful verification process” or DVP that exams a part to failure, and non-destructive testing [NDT] procedures that every particular person half is subjected to earlier than going onto the automobile. That is the place the staff double-checks if its new Barcelona entrance wing is inflexible sufficient to adjust to the FIA’s stricter load exams.
Commercial
However as Piraccini explains, this is not a linear course of both, as the standard division is already supporting the manufacturing course of at an earlier stage. “These competences are already required throughout manufacturing section, and we wish to velocity up the time to race. If we’re to detect a problem, it is essential to detect it earlier than the tip of the method so we do not have to begin over once more. We additionally conduct exams through the half’s life cycle whereas we’re servicing it. A entrance wing is checked when it is model new, and once more after a sure mileage to make sure that there hasn’t been any exterior affect from on-track operating that has affected the stiffness.”
Non-destructive testing
Non-destructive testingRed Bull Content material Pool
Purple Bull Content material Pool
Step 5: Meeting
The ultimate section is the meeting course of the place sub assemblies are being put collectively, akin to the total suspension and your entire nostril field together with entrance wing. As Piraccini takes us by means of the division, we’re laying our eyes on the squad’s new ground for Imola that’s being becoming with wiring looms. No footage allowed, naturally. These assemblies are then moved to the workshop space. In the meantime, the paint store is making use of the livery and sponsor decals on every half.
Commercial
Often, vehicles are being shipped in components earlier than being totally assembled on the observe. However on the time we’re nosing round, the staff is totally assembling the vehicles of and within the race bays. There may be such a factor as a house benefit in F1, as Faenza being simply 20 minutes down the street from Imola means Racing Bulls can shift a few of its deadlines a bit later earlier than having to launch its vehicles.
How the method has modified
What has grow to be clear is the extreme choreography required to additional minimize down on the money and time it takes to thrash out new components, additional pushed by F1’s aero restrictions. Effectivity is the excitement phrase, and so is efficient communication.
The identical mantra applies each on-track because it does again within the manufacturing facility. Each millisecond counts.
Photograph by: Purple Bull Content material Pool
